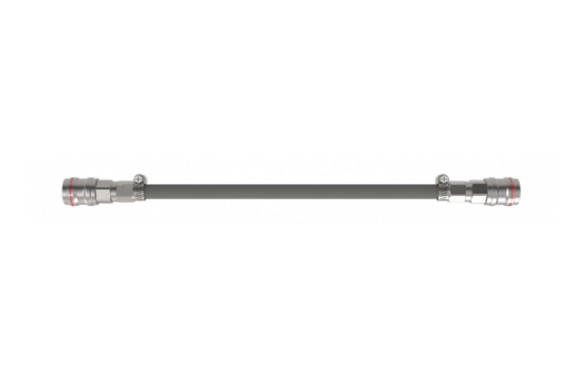

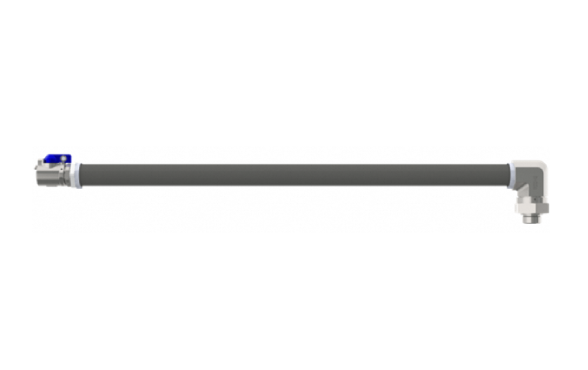

Hose Assembly
The hose assembly consists of an EPDM rubber hose and fittings at both ends. The fittings can be flexibly configured according to the application scenario. The EPDM hose is assembled using a crimping process, ensuring compatibility with the fluid media and long-term service life.
PRODUCT FEATURES：
◆ EPDM rubber hose, offering flexible routing.
◆ Crimping process ensures high reliability and strong pressure-bearing capacity.
◆ Fittings can be adapted to different application scenarios.
◆ 100% air-tightness testing to ensure no leakage.
◆ 100% pure water flushing to ensure hose cleanliness and freedom from impurities.
◆ 100% internal drying upon leaving the factory to prevent bacterial growth.
TECHNICAL SPECIFICATION:
|
Hose Spec.(inch) |
Nominal Diameter (OD)mm |
Connection Type |
Fitting Fastening Method |
Test Pressure(Mpa) |
Bending Radius(mm) |
Hose Material |
Hose Color |
|
1/4 |
6.4 |
QD Fitting |
Crimping/ |
1 |
40 |
EPDM |
Black/ |
|
3/8 |
9.5 |
60 |
|||||
|
1/2 |
12.7 |
70 |
|||||
|
5/8 |
15.8 |
90 |
|||||
|
1 |
25.4 |
FND25/ FND40/ FD83/ Chuck 360° Swivel Joint |
110 |
||||
|
1.5 |
38.1 |
130 |
|||||
|
2 |
50.8 |
150 |
|
Item |
Description |
Parameters |
|
Main Pipeline |
Material |
SUS304/SUS316 |
|
Pipeline Specifications |
3'' /4''/5''/6''/8''/10'' |
|
|
Pipe Type |
Sanitary Grade |
|
|
Connection Type Option |
Hose Clamp |
|
|
Slip-on Flange |
||
|
Butterfly Valve |
||
|
Air Vent Valve Option |
SUS304 Auto Air Vent Valve |
|
|
Brass Auto Air Vent Valve |
||
|
Drain Valve |
Ball Valve + Barbed Fitting |
|
|
Segment Length |
2m/3m |
|
|
Insulation Material (Optional) |
NBR |
|
|
Colored Casing (Optional) |
Red / Blue |
|
|
PVC/SUS304/Galvanized Steel |
||
|
Heating Tape (Optional) |
Resistive Heating Tape |
|
|
Branch Pipelines |
Pipe Material (Optional)） |
SUS304/SUS316 |
|
Pipe Specifications (Optional) |
1''/2''/3''/4'' |
|
|
Pipeline Connection Type (Optional) |
Manual Ball Valve + FND/FD83 Quick-Disconnect Ball Valve |
|
|
Butterfly Valve + Sanitary Chuck |
||
|
Flow Control (Optional) |
Electric Control Valve + Flow Meter |
|
|
Pressure Monitoring |
Differential Pressure Sensor / Pressure Sensor |
|
|
Temperature Monitoring |
Temperature Sensor |
|
|
Pressure Rating |
Operating Pressure |
5Bar |
|
Test Pressure |
10Bar |
