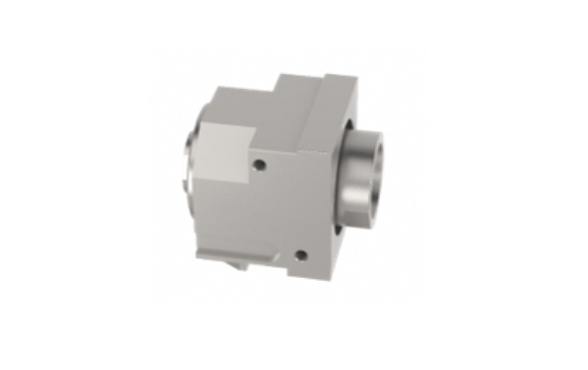

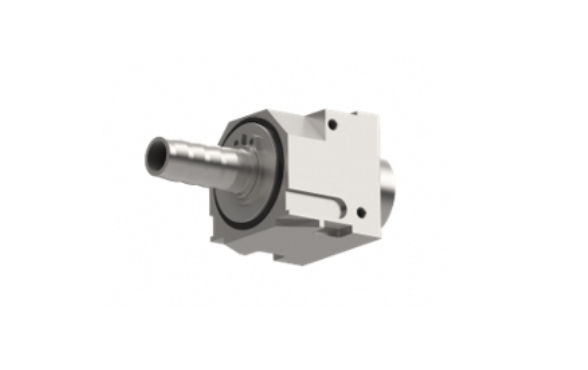

FJ Floating Module
The FJ series floating module is designed based on the NVIDIA floating module specification and is used in blind-mate architecture server liquid cooling plates. One end of the floating module connects to the cooling plate inlet/outlet hoses, while the other end connects to the quick disconnect male plug. The module body is fixed to the server chassis. The floating module enables a 360° floating tolerance of ±2 mm.
PRODUCT FEATURES：
◆ SUS304 stainless steel material with excellent corrosion resistance;
◆ ±2 mm tolerance within a 360° range;
◆ Various connection forms available.
PRODUCT LIST：
|
No. |
Series |
Plug/Socket |
Part Number |
Product Model |
|
1 |
FJ04 |
202353229S |
FJ04-S31-UNF9/16-F1 |
3/8" Barbed Fitting ↔ 9/16-18 UNF-2B Internal Thread |
|
2 |
FJ04 |
202353521S |
FJ04-S31-UNF9/16-F1 |
Welded Port ↔ 9/16-18 UNF-2B Internal Thread |
|
3 |
FJ06 |
202354462S |
FJ06-S31-UNF3/4-F1 |
1/2" Barbed Fitting ↔ 3/4-16 UNF-2B Internal Thread |
|
4 |
FJ06 |
202354461S |
FJ06-S35-UNF3/4-F1 |
Welded Port ↔ 3/4-16 UNF-2B Internal Thread |
|
5 |
FJ08 |
202353225S |
FJ08-S35-UNF7/8-5/8 |
5/8" Barbed Fitting ↔ 7/8-14 UNF-2B Internal Thread |
|
6 |
FJ08 |
202353316S |
FJ08-S32-UNF7/8-UNF3/4F1 |
3/4-16 UNF-2A External Thread ↔ 7/8-14 UNF-2B Internal Thread |
|
7 |
FJ08 |
202353446S |
FJ08-S35-UNF7/8-F1 |
Welded Port ↔ 7/8-14 UNF-2B Internal Thread |
